High Performance ESE ZERU ESE Active Lightning Rod

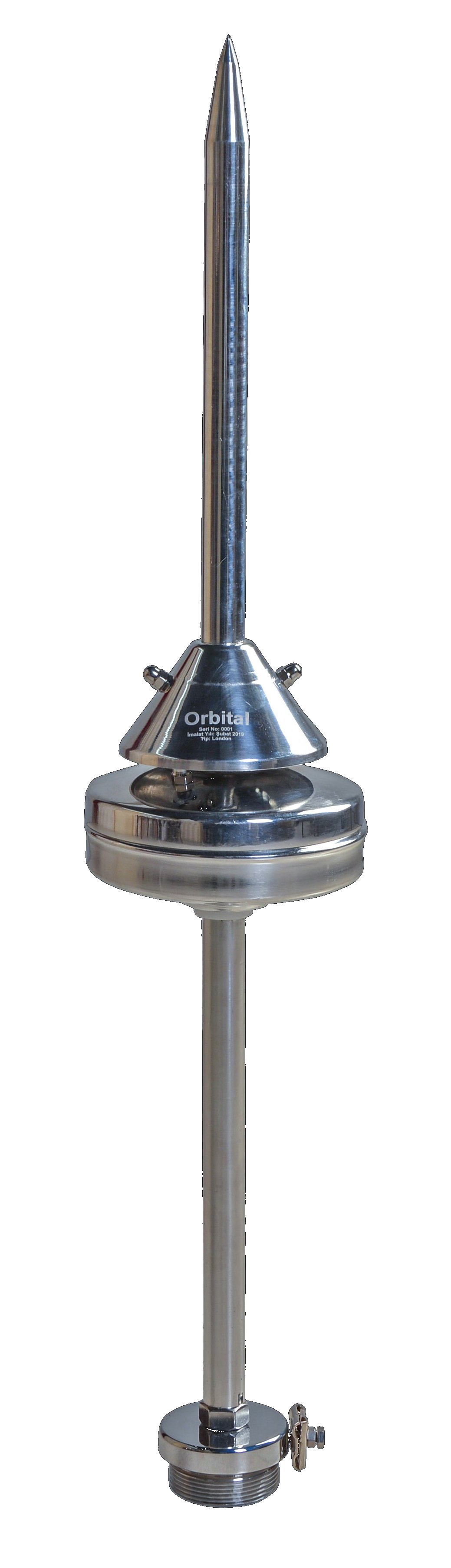

ZERU product photo
NFC 17-102:2011 CE Certified 200kA Tested METU Lab Certified
ESE Active Lightning Rod

ZERU ESE ACTIVE LIGHTNING ROD

ORBITAL's high-performance ESE active lightning rod. ΔT = 60µs, up to 111m protection radius, independently tested to 200kA. NFC 17-102:2011 certified. For commercial buildings, schools and medium-scale structures.

Advance Time ΔT
60µs
Certified NFC 17-102 value
Max Protection Radius
111m
Level 4 at h=15m
Current Rating
200kA
Tested — 2× NFC minimum
Protection Levels
I–IV
All NFC 17-102 levels
Manufacturer direct — no intermediaries. Ships from Izmir, Turkey worldwide.

The ZERU is ORBITAL's high-performance ESE active lightning rod for commercial buildings, educational facilities, hotels and medium to large structures. With a certified ΔT advance time of 60µs and an independently verified current withstanding capacity of 200kA, the ZERU provides wide-area active lightning protection from a single installation point.

The ZERU uses the same ion generation principle as all ORBITAL ESE active lightning rods — an electroatmospheric capacitor detects the developing storm field and activates the internal high-voltage impulse emitter, generating an upward leader that initiates earlier than competing structures. Its protection radius of up to 111m at maximum height makes it suitable for the majority of commercial and institutional projects.

The ZERU requires no external power source, no batteries and no electronic control unit. It is entirely autonomous — once correctly installed, it operates indefinitely with only periodic inspection. All components are manufactured from 304L inox stainless steel, ensuring reliable performance in marine, industrial and tropical environments.

Independent certification: The ZERU's ΔT value was verified by METU (Middle East Technical University) laboratory — an accredited NFC 17-102 test facility. Current withstanding tests conducted at HIZAL Lightning Test Lab. Full test reports available on request. Contact ORBITAL →

ΔT = 60µs — High Performance
Initiates its upward leader 60 microseconds earlier than a passive rod under identical conditions — translating directly into a strong protection radius per NFC 17-102.
🔋
Fully Autonomous — Zero Power Required
No batteries, no external power, no electronic components. Powered entirely by the atmospheric electric field of the approaching storm.
🏗️
200kA Current Withstanding
Tested to 200kA — double the NFC 17-102 minimum of 100kA. Full safety margin for rare high-energy strike events.
🔬
Field-Testable with ORB-ONE
Function verifiable in the field using the ORBITAL ORB-ONE ESE Test Unit — essential for NFC 17-102 maintenance compliance without dismantling the installation.
🌊
304L Stainless Steel — All Environments
All external components in 304L inox stainless steel. Suitable for marine, industrial, tropical and arctic environments without additional surface treatment.
Electrical Performance
Advance Time (ΔT)60 µs — certified per NFC 17-102 Annex C test
Peak Current Withstanding200 kA (10/350µs waveform) — 2× NFC 17-102 minimum
Operating PrincipleIon generation — electroatmospheric capacitor + high-voltage impulse emitter
Protection LevelsLevel I (98%), Level II (95%), Level III (90%), Level IV (80%)
Power SourceNone — fully autonomous, powered by atmospheric electric field
Mechanical & Environmental
Construction Material304L Inox Stainless Steel — all external components
Operating Temperature−40°C to +85°C
Ingress ProtectionIP67
Wind ResistanceTested to 220 km/h
Min. Installation Height2m above highest point of protected structure (NFC 17-102 minimum)
Recommended Height4–6m for optimal Rp
Compliance & Certification
Primary StandardNFC 17-102:2011 — Early Streamer Emission
CE MarkingYes — Declaration of Conformity available upon request
ΔT Test LaboratoryMETU (Middle East Technical University), Turkey — accredited
Current Test LaboratoryHIZAL Lightning Test Lab, Turkey — accredited
Quality ManagementISO 9001:2015
Compatibility
Down ConductorsTape/strip, round conductor, insulated HVSC cable — all standard types
Test EquipmentORBITAL ORB-ONE ESE Test Unit, ORB-X Strike Counter Test Unit
Strike CountersVIRTU and STELLAR (all ORBITAL series)
Warranty20 years

Protection radius Rp calculated per NFC 17-102 formula: Rp = √[h(2r − h) + ΔT(2r + ΔT)]
h = mast height above structure · r = standard radius per level · ΔT = 60µs (ZERU certified value)

Height (m) Level 1 — r=20m
Protection Radius (m)
Level 2 — r=30m
Protection Radius (m)
Level 3 — r=45m
Protection Radius (m)
Level 4 — r=60m
Protection Radius (m)
2788696105
3788696106
4788697106
5798697107
6798797107
8798798108
10798899109
158089101111

107m is the maximum protection radius recognised under NFC 17-102 regardless of calculated value. For project-specific calculations use the ORBITAL Risk Calculator or contact our engineers.

Mast Positioning
Install the ZERU at the highest structural point on a dedicated mast. The lightning rod tip must be at minimum 2m above all protected elements — roof-mounted equipment, parapets and any conductive protrusions. ORBITAL recommends 4–6m mast height for most installations to maximise Rp. Refer to the protection radius table for the exact Rp value at your chosen height.
Down Conductors
Minimum 50mm² copper or 70mm² aluminium. Route as vertically as possible — no horizontal runs exceeding 0.5m. Bond to any metallic structural element within 1m of the conductor path to prevent side flashes. Install a test joint at ground level on each conductor for earthing resistance measurement. Minimum 2 down conductors required for buildings over 20m height or 25m perimeter.
Earthing System
Target resistance: ≤10Ω per IEC 62305-3. Measure with an earth resistance tester before commissioning. For rocky, sandy or dry soils where this target cannot be met with standard rods, use ORBetter® Earthing Enhancement Compound to reduce contact resistance. Install additional electrodes in a radial configuration if required.
Strike Counter & Testing
NFC 17-102 requires a strike counter on each down conductor for maintenance record documentation. Commission the installation using the ORB-ONE ESE Test Unit to verify ZERU function before handover. Document test results for the installation file.
1
Position mast — minimum 2m above all protected elements
Verify coverage radius covers full structure footprint using the Rp formula or Risk Calculator.
2
Install minimum 2 down conductors — 50mm² copper
Route vertically, bond to structural metalwork, add test joint at base of each conductor.
3
Verify earthing resistance ≤10Ω
Measure before commissioning. Add electrodes or ORBetter® compound if target not reached.
4
Install VIRTU strike counter on each down conductor
Required for NFC 17-102 compliance and maintenance documentation.
5
Commission with ORB-ONE test unit & document
Verify ZERU function, record results. Complete the installation file with all test certificates.
