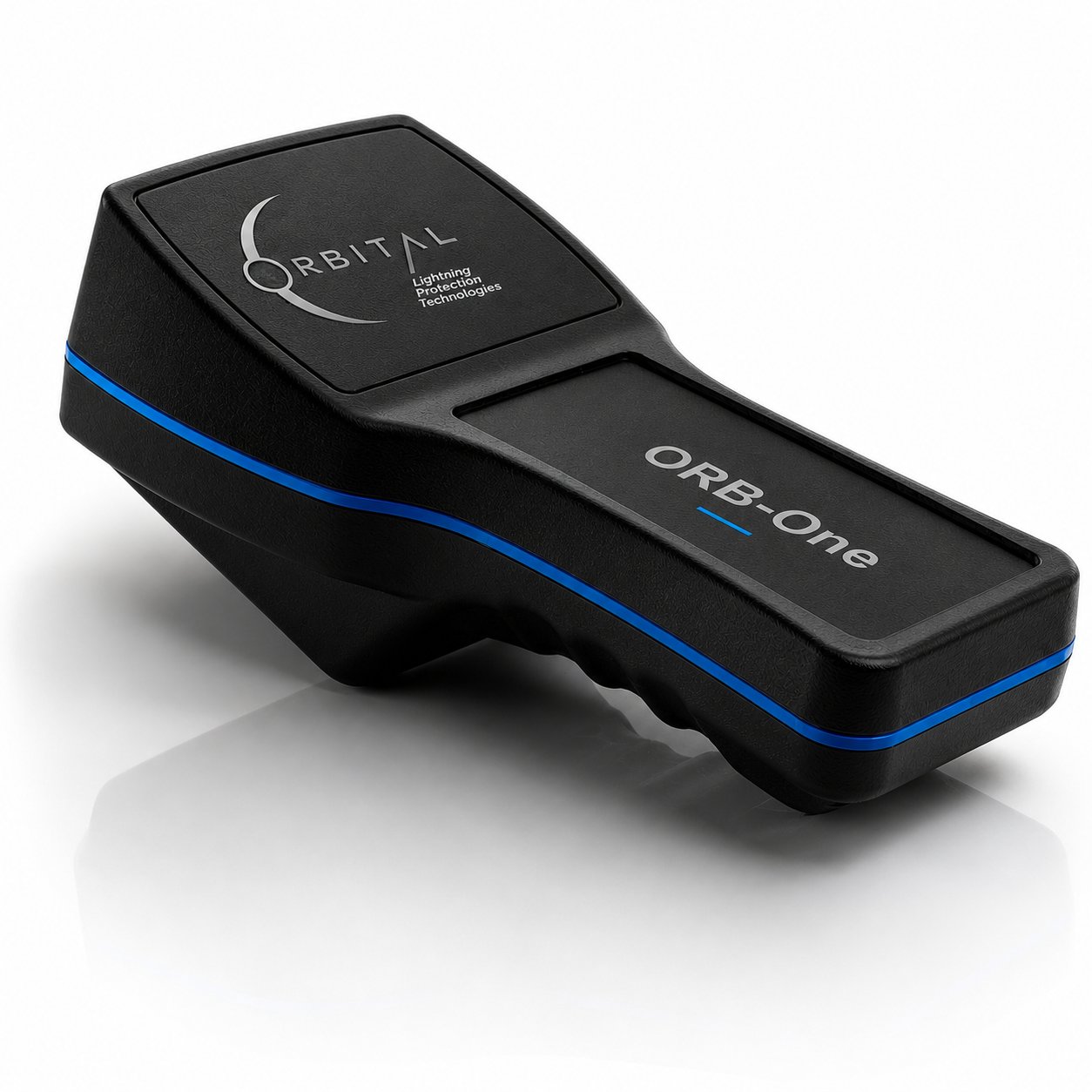

ORB-ONE ESE LIGHTNING ROD TEST UNIT

Handheld test unit for ORBITAL ESE active lightning rods. Verifies lightning rod function in the field without dismantling. Pass / Active / Defective LED result. Essential for NFC 17-102 maintenance compliance.

Request Quotation → Ask on WhatsApp Get Free System Design

Manufacturer direct — no intermediaries. Ships from Izmir, Turkey worldwide.

The ORB-ONE is ORBITAL's handheld test unit for ESE active lightning rods. Under NFC 17-102, periodic verification of ESE lightning rod function is a mandatory maintenance requirement — and the ORB-ONE makes this fast, simple and safe without requiring the lightning rod to be removed from its installation.

To test, the technician connects the ORB-ONE directly to the ESE lightning rod via the included cable and activates the unit. A precisely controlled test signal is applied and the lightning rod's response is read immediately. Three LED indicators display the result: Power (unit active), Active (lightning rod functioning correctly), or Defective (lightning rod requires inspection or replacement).

The ORB-ONE is compatible with all ORBITAL ESE lightning rods — HELIA, COMET, ZERU and CONTRA series. Its ergonomic pistol-grip design allows single-person operation at height. Test results must be recorded in the installation maintenance log as part of NFC 17-102 compliance documentation.

⚡

In-Field Testing — No Dismantling

Tests the ESE lightning rod while fully installed on the mast. No removal, no interruption to protection during the test.

🔋

Clear Pass/Fail Result

Power / Active / Defective LED display. Immediate, unambiguous result — no interpretation needed.

🏗️

All ORBITAL ESE Lightning Rods

Compatible with HELIA, COMET, ZERU, CONTRA 30 and CONTRA 60 — the complete ORBITAL ESE range.

🔬

NFC 17-102 Compliance

Satisfies the mandatory periodic function verification requirement under NFC 17-102 maintenance procedures.

🌊

Battery Powered

Fully portable — no mains power required. Operates anywhere the technician can reach the lightning rod.

✅

Ergonomic Design

Pistol-grip handheld form for comfortable single-handed operation at height.

Technical Specifications
Function	Tests and verifies active ESE lightning rod function
Compatible lightning rods	All ORBITAL ESE lightning rods — HELIA, COMET, ZERU, CONTRA series
Test Method	Non-destructive in-field test — lightning rod remains installed

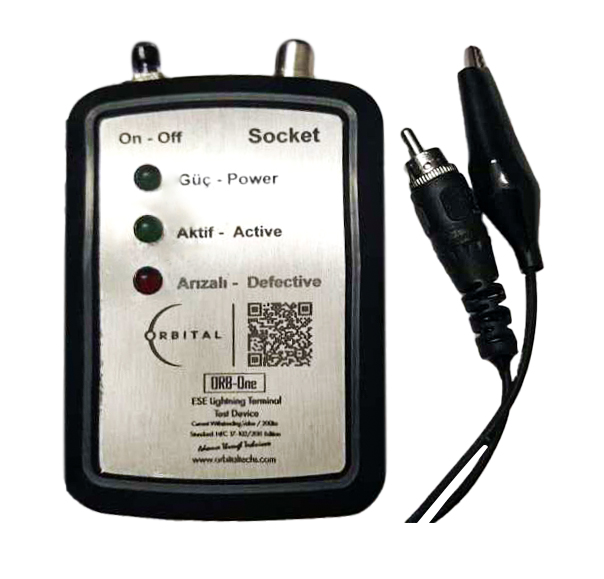

Result Indication	Power / Active / Defective LED display
Power	Battery powered — portable handheld unit
Housing	Ergonomic handheld design with trigger grip
Connection	Direct connection to ESE lightning rod via cable
Standard	NFC 17-102 maintenance requirement compliance
Warranty	2 years

How to Test

Connect the ORB-ONE cable to the ESE lightning rod test socket. Activate the unit — the Power LED confirms the ORB-ONE is ready. The Active LED lights if the lightning rod is functioning correctly. If the Defective LED lights, the lightning rod requires inspection or replacement.

Test Frequency

NFC 17-102 requires lightning rod function verification after every recorded lightning strike and at regular periodic intervals. ORBITAL recommends annual testing as a minimum, or after any storm event that has triggered the strike counter.

Documentation

Record the test date, result and tester serial number in the installation maintenance log. A defective result must be documented and the lightning rod replaced before the next storm season.
