Type 2 · Class II · 3P+N OSPD 301 3+NPE 275S Type 2 three-phase surge protective device
IEC / EN 61643-11 Type 2 · Class II Imax 40 kA Uc 275 V AC
Surge Protection Device

OSPD 301 — 3+NPE 275S TYPE 2 40KA

AC surge protective device for low-voltage distribution — three-phase + NPE (3P+N), TT network, protection modes L1, L2, L3–N and N–PE. Thermo-dynamic disconnector, mechanical fault window and remote signalling.

SPD Class
II / T2
IEC/EN 61643-11 · DIN VDE class C
Topology
3P+N
TT · Un 220/380 V AC · 50/60 Hz
Imax / In
40 / 20kA
8/20 µs waveform
Protection level Up
≤1.2kV
L–N · N–PE ≤1.5 kV
Manufacturer direct — no intermediaries. Ships from Izmir, Turkey worldwide.

OSPD 301 is ORBITAL's catalogue designation for a Type 2 / Class II surge protective device in a 3P+N (three-phase + NPE) topology for TT low-voltage networks. It sits at the LPZ 1–2 boundary concept to limit lightning and switching transients before they reach downstream distribution and sensitive loads.

Protection modes are L1, L2, L3–N and N–PE. High-energy stages use metal oxide varistor (MOV) elements with a thermo-dynamic disconnector. The mechanical inspection window shows green: OK · red: replace, and remote signalling contacts support panel alarms and supervisory systems.

Technical documentation: Electrical architecture follows IEC/EN 61643-11 Type 2 practice for this 3P+N TT topology. Coding, dimension and wiring illustrations are supplied with quotations and submittal packages on request.

Type 2 · Class II duty
Designed for coordinated surge diversion at service or sub-distribution level per IEC 61643 practice.
🔌
3P+N · TT networks
Three-phase TT boards at nominal 220/380 V with continuous operating voltage Uc = 275 V AC on L–N branches.
🛡️
40 kA discharge capability
Imax 40 kA and In 20 kA (8/20 µs) — robust handling of induced surge currents.
📟
Remote signalling
Remote contact for fault indication — convenient for panel alarms and BMS integration.
IEC/EN 61643-11 alignment
Documented parameters for project submissions; CE marked industrial-grade SPD module.

Terminal coding is illustrated below. Dimension and circuit drawings can be supplied with quotations or on request. Full published parameters are summarised in the tables below.

Coding

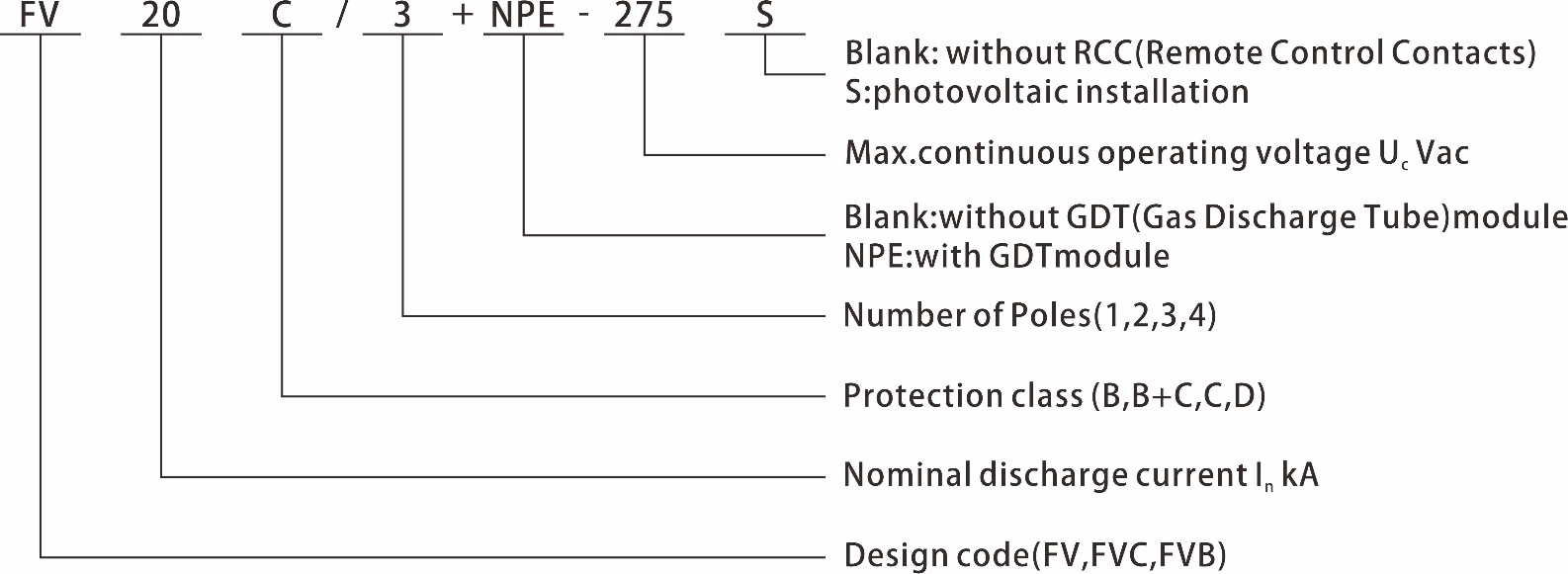

OSPD 301 terminal coding — L1, L2, L3, N and PE designation
Terminal designation — three phase lines, neutral and protective earth.
Electrical parameters
Electrical parameters
Model designationFV20C/3+NPE-275S (reference base)
SPD protection standardIEC 61643-11 / EN 61643-11 — Type 2
SPD installation type standardIEC 61643-11 / EN 61643-11 — Class II
Protection level (VDE)DIN VDE 0675-6 — Class C
Type of networkTT
Protection modeL1, L2, L3–N · N–PE
Nominal voltage Un220/380 Vac · 50/60 Hz
Maximum continuous operating voltage Uc275 Vac · 50/60 Hz
Continuous operating current IC< 20 µA
Residual current IPE≤ 20 µA dc · ≤ 500 µA ac
Standby power consumption PC≤ 25 mVA
Maximum discharge current Imax (8/20 µs)40 kA
Nominal discharge current In (8/20 µs)20 kA
Voltage protection level Up — L–N≤ 1.2 kV
Voltage protection level Up — N–PE≤ 1.5 kV
Isolation resistance Risol> 1000 MΩ
Response time tA — L–N≤ 25 ns
Response time tA — N–PE≤ 1000 ns
Remote control contactYes
Disconnection indicatorMechanical — green OK / red replace
Mechanical & environmental
I/O connectionsScrew terminal 10–35 mm² · connection bus option
Installation locationInside
Mounting typeSymmetrical DIN rail (EN 50022 / DIN 46277-3)
ColourGrey
Degree of protectionIP20
Housing materialUL94 V-0
Ambient temperature−40°C · +80°C
Altitude≤ 2000 m amsl
Permissible humidity30%–90%
Mounting
Mount OSPD 301 on a symmetrical DIN rail inside the switchgear enclosure (indoor, IP20 module). Keep cable bends generous and maintain separation from unrelated sensitive bundles where possible.
Conductors & torque
Terminate line, neutral and PE per the Coding diagram using conductors within the rated range (10–35 mm² as published). Tighten screws to manufacturer torque; poor terminations increase residual voltage and heating.
Earthing & coordination
Bond the PE branch to the installation equipotential bar with a short, low-inductance route. Coordinate with upstream/downstream SPDs and external LPS per project risk assessment — SPD performance depends on bonding quality.
Inspection & replacement
During periodic maintenance, verify the mechanical indicator (green OK / red replace). Check remote signalling continuity if monitored. Replace modules after indication or following severe surge events per owner engineering policy.

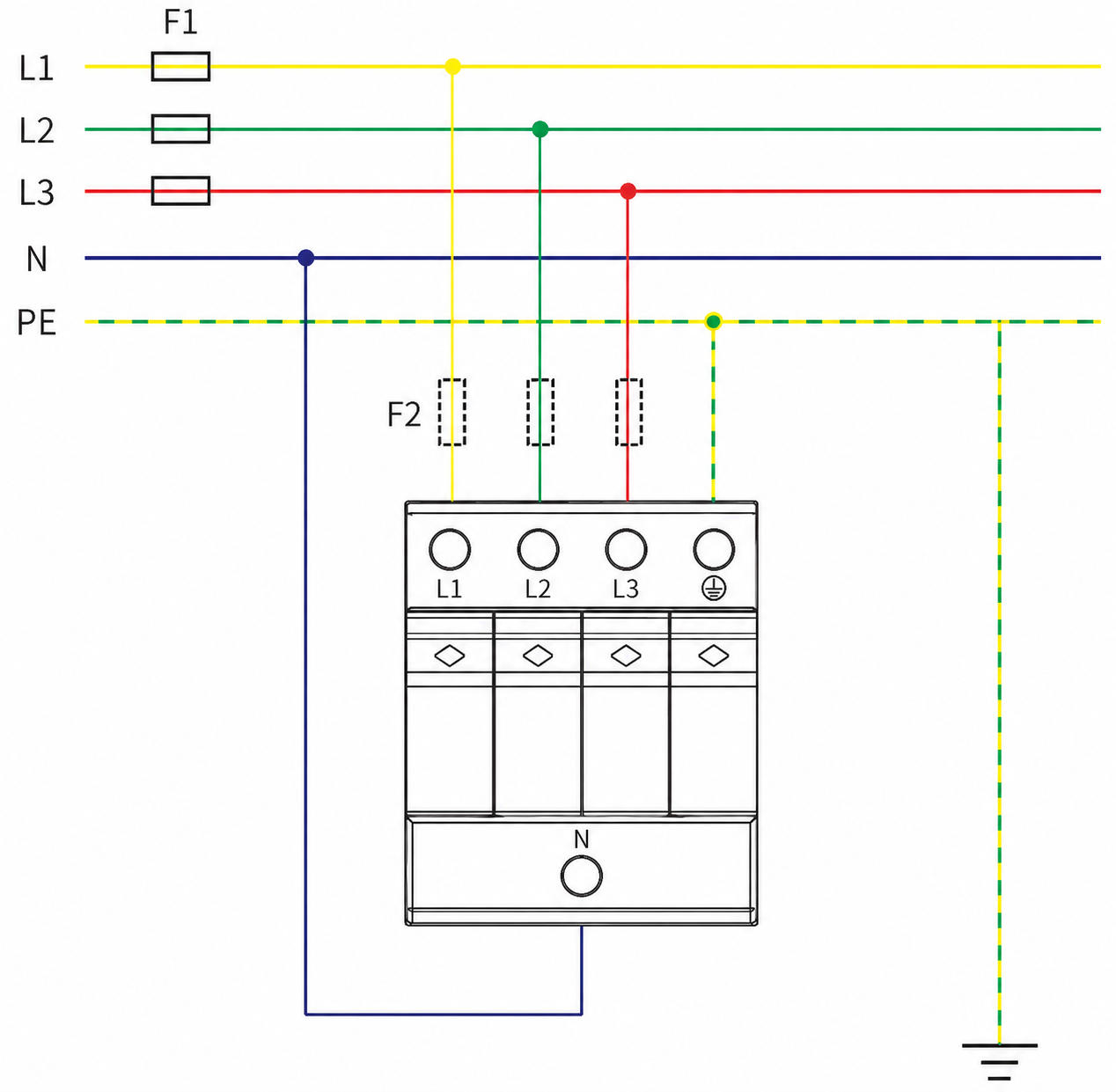

OSPD 301 DIN rail installation example

Typical panel mounting — retain conductor sizing, torque values and clearances per project drawings.
